7m Transport Public Electric Mini Buses LHD Driving Mileage 200km

Brand Name : ZEVAUTO

Model Number : CDL6700URBEV

Certification : ISO, PNS Class 2

Place of Origin : Chengdu, China

MOQ : 1

Payment Terms : T/T

Supply Ability : 25000 units/per year

Delivery Time : 25 working days

Packaging Details : nude packing

Product name : New Energy Electric Vehicle

Fule type : Electric

Emission standard : Zero

Transmission type : Automatic

Passenger capacity : 45 (24 seats)

Dimensions(mm) : 6980*2200*3000

Wheelbase(mm) : 3650

Front/rear suspension(mm) : 1755/1575

Approach/Departure(º) : 12/13

Max speed : 69km/h

G.V.W(kg) : 8500

Driving mileage ( With A/C/No A/C)(km) : ≥200km

Steering position : LHD

Lithium battery : Battery Power 134.4 kwh

Motor controller : Five-in-one controller

Contact Now

7m New Energy Electric Vehicle Public Transport Passenger Buses Electric Mini Bus Automatic



Description:



It adopts high-efficiency permanent magnet synchronous electric drive system and lithium iron phosphate power battery, which has the advantages of safety, reliability, high efficiency and energy saving, and intelligent control.Through the intelligent management of vehicle control, motor drive, and energy management,as well as the precise optimization of control strategies, the vehicle's power, economy and comfort can reach the best balance.



Product Feature

This 6.6-meter long electric mini bus offers the option of left-hand drive (LHD) or right-hand drive (RHD), with seating for 23 passengers and sliding windows. It operates on battery charging, providing an environmentally friendly and energy-efficient solution for small group transportation, sightseeing tours, and urban commuting needs. The bus is equipped with advanced safety technologies and features, ensuring enhanced safety and comfort for passengers and drivers.



Specs

Overall specs Passenger capacity 45 (23+1 seats) Motor specs Manufacturer ZEV
Vehicle size (mm) 6980*2200*3000 Model ZEV
Wheel base (mm) 3650 Position rear
Front/Rear overhang 1755/1575 Motor type PMSM
Front/Rear tread 1865/1600 Max.power(kw) 100
Approach/Departure(º) 12/13 Max. torque (N.m) 1000
Max. Grade-ability(%) ≥15% Displacement(L) --
Top speed (km/h) 69km/h Fuel Electric
Curb weight (kg) 5800 Emission --
Gross weight (kg) 8500
Battery 134.4 kwh,LiFePo4
Cruising range ≥250km
Charging time Within 2h
  Item Specs Remarks
Chassis Front axle DANA
Rear axle DANA
Transmission Auto transmission
Suspension Leaf spring
Steering Integral power steering
Braking Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster
Tyre 215/75R17.5 steel rim Tubeless radial tire
Battery Maintenance-free type
electronics AC 13000kcal/h,Single-cold air conditioning
Defroster Natural air blow type
Instrument CAN Bus Line
Audio-system MP5
Lights Front and rear combination light. Fog light. LED through type inner dome light, step light.
Monitoring system CCTV system with 5 cameras, 7 inch screen
Route board Front LED type
Bus facilities Body 2-step entrance
Passenger door Front aluminum inner swing door
Window Sliding side window, laminated front windscreen and tempered rear-shield
Passenger seat 23 plastic city bus seats
Interior

PVC duct, PVC composite side plate.

Punched aluminum-plastic roof plate.


Floor and floor cover PVC floor, anti-slippery, flame retardant leather
Paint Solid paint
Others Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area,wire connector for Payment machine,WIFI, Travelling record with GPS

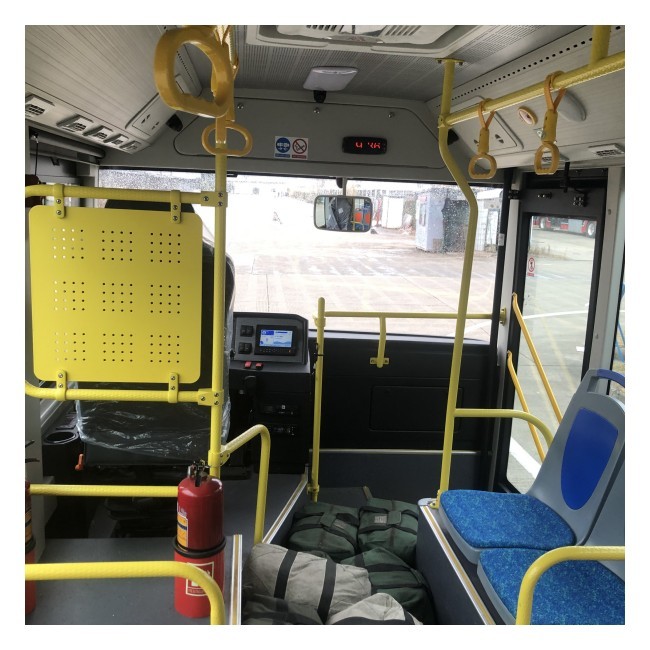

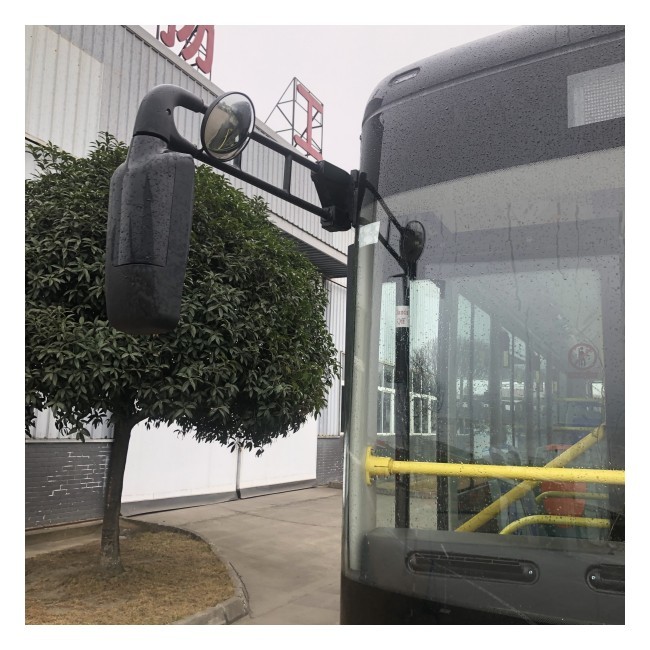

Pictures for reference

7m Transport Public Electric Mini Buses LHD Driving Mileage 200km7m Transport Public Electric Mini Buses LHD Driving Mileage 200km7m Transport Public Electric Mini Buses LHD Driving Mileage 200km


FAQ:


Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.



Q: What can we offer?

A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.

    2. Buses and coaches CBU, KD kit, Chassis and Body frames

    3. Spare parts including various charger for EV



Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .



Q: What’s the delivery time?

A: Normally 20-35 workdays.



Q: Why choose us?

A: We guarantee professional service, competitive price with high quality vehicles.
