7.7m 26 Seats Air Conditioned YC4D140-45 City Tour Bus

Brand Name : ZEVAUTO

Model Number : CDL6770URDE

Certification : ISO

Place of Origin : Chengdu, China

MOQ : 1

Price : USD 30000-40000 per unit

Supply Ability : 25000 units/per year

Delivery Time : 25 working days

Packaging Details : nude packing

Product name : Diesel Urban Engine Buses

Size : 7695*2270*3150

Passenger capacity : 45/14-26

Engine model : YC4D140-45

Engine type : 4 cylinders inline

Engine osition : Rear

Max.power : 103kw

Max. torque : 450N.m

Emission : IV

Transmission : Manual 5 gears

Suspension : Leaf spring

Braking : Air brake

Tyre : 7.50R20-14PR

AC : Yes

Contact Now



7.7m City Road Tour Bus With Air-Condition Public Bus 26seats Diesel Urban Engine Buses



Specs



Overall specs Passenger capacity 45/14-26 Motor specs Manufacturer Yuchai
Vehicle size (mm) 7695*2270*3150 Model YC4D140-45
Wheel base (mm) 3550 Position rear
Front/Rear overhang 1870/2270 Engine type 4 cylinders inline
Front/Rear tread 1860/1700 Max.power(kw/rpm) 103
Approach/Departure(º) 10/10 Max. torque (N.m/rpm) 450
Max. Grade-ability(%) ≥25% Displacement(L) 4.214
Top speed (km/h) 69km/h Fule Diesel
Curb weight (kg) 7000 Emission IV
Gross weight (kg) 10000
  Item Specs Remarks
Chassis Front axle DANA
Rear axle DANA
Transmission Manual 5 gears
Suspension Leaf spring
Steering Integral power steering, electro-hydraulic power steering
Braking Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster
Tyre 7.50R20-14PR steel rim Tubeless radial tire
Battery Maintenance-free type
electronics AC 18000kcal/h
Defroster yes
Instrument Bus instrument, English system
Audio-system MP5
Lights Front and rear combination light. Fog light. inner dome light, step light.
Monitoring system CCTV system with 6 cameras
Route board Front LED type
Bus facilities Body 2 steps-entrance
Passenger door Front and middle aluminum inner swing door
Window Sliding side window, laminated front windscreen and tempered rear-shield
Passenger seat 26 plastic city bus seats
Interior

PVC duct, PVC composite side plate.

Punched aluminum-plastic roof plate.


Floor and floor cover PVC floor, anti-slippery, flame retardant leather
Paint Solid paint
Others Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,rederved payment machine,WIFI space and connector, Travelling record with GPS

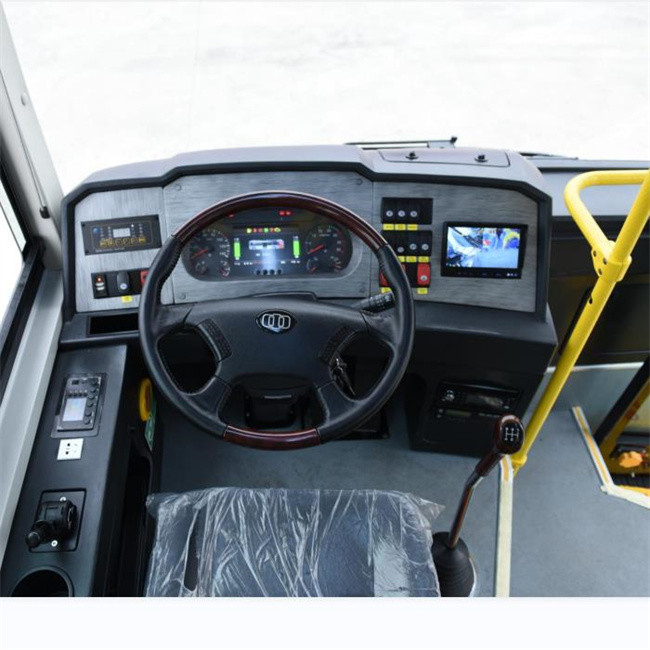

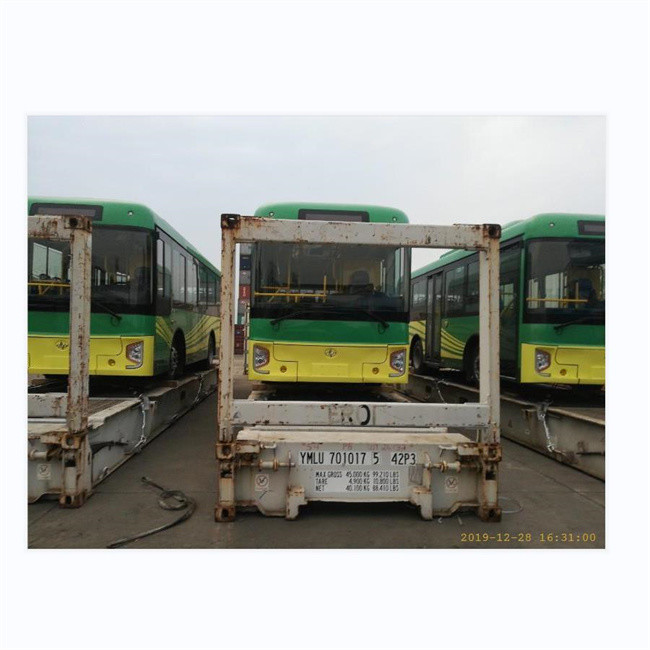

Pictures

7.7m 26 Seats Air Conditioned YC4D140-45 City Tour Bus7.7m 26 Seats Air Conditioned YC4D140-45 City Tour Bus


FAQ

Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.



Q: What can we offer?

A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.

2. Buses and Coaches CBU, KD kiy,Chassis and Body frames.

3. Spare parts including various charger for EV.



Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .



Q: What’s the delivery time?

A: Normally 20-35 workdays.



Q: Why choose us?

A: We guarantee professional service, competitive price with high quality vehicles.
