19 Seater Zev Bus 6m Electric Mini Bus LHD/RHD Top Speed 100km/H With AC .
The 19-Seater ZEV Bus is a compact and eco-friendly electric mini bus designed for efficient community transportation. With zero emissions and a seating capacity of 19 passengers, it provides a comfortable and sustainable travel option. Equipped with air conditioning and capable of reaching a top speed of 100 km/h, this electric mini bus ensures a pleasant and efficient journey for passengers while reducing environmental impact.
Specs:
| Overall specs | Passenger capacity | 19 (18+1) | Motor specs | Manufacturer | Yuchai |
| Vehicle size (mm) | 5990*2025*2635 | Model | YC4FA115-40 |
| Wheel base (mm) | 3200 | Position | rear |
| Front/Rear overhang | 1135/1655 | Engine type | 4 cylinders inline |
| Front/Rear tread | 1665/1525 | Max.power(kw) | 85 |
| Approach/Departure(º) | 17.5/13 | Max. torque (N.m) | 300 |
| Max. Grade-ability(%) | ≥20% | Displacement(L) | 2.982 |
| Top speed (km/h) | 100km/h | Fuel | Diesel |
| Curb weight (kg) | 3500 | Emission | 4 |
| Gross weight (kg) | 4990 | |
| | Item | Specs | Remarks |
| Chassis | Front axle | DANA | |
| Rear axle | DANA | |
| Transmission | Manual 5 gears froward | |
| Clutch | Single diaphragm spring | |
| Suspension | Leaf spring | |
| Steering | Integral power steering | |
| Braking | Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster | |
| Tyre | 215/75R16 steel rim Tubeless radial tire | |
| Battery | Maintenance-free type | |
| electronics | AC | 12000kcal/h | |
| Defroster | yes | |
| Instrument | BUS instrument, English system | |
| Audio-system | MP5 | |
| Lights | Front and rear combination light. Fog light. inner dome light, step light. | |
| Monitoring system | CCTV system with 5 cameras | |
| Route board | -- | |
| Bus facilities | Body | Stamping pieces | |
| Passenger door | Front aluminum door | |
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | |
| Passenger seat | 18 artificial leather seats | |
| Interior | PVC duct, PVC composite side plate. | |
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |
| Paint | Solid paint | |
| Others | Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,reserved wire connector for WIFI device; Travelling record with GPS | |

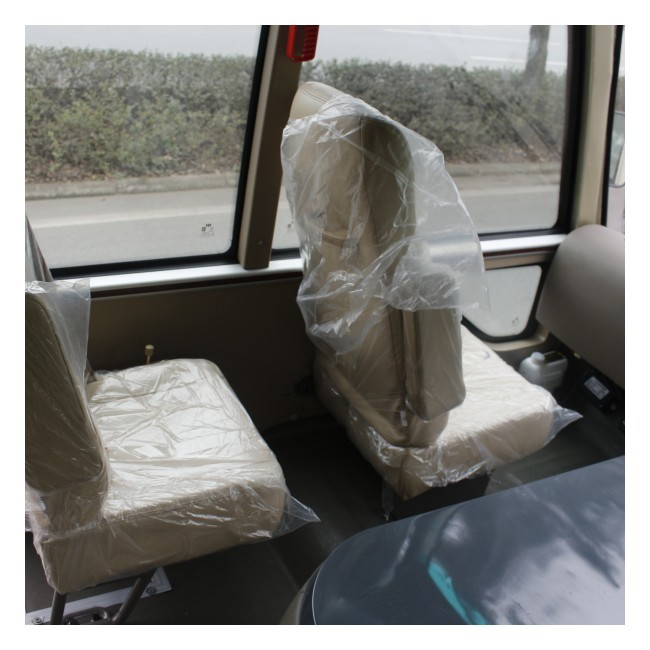

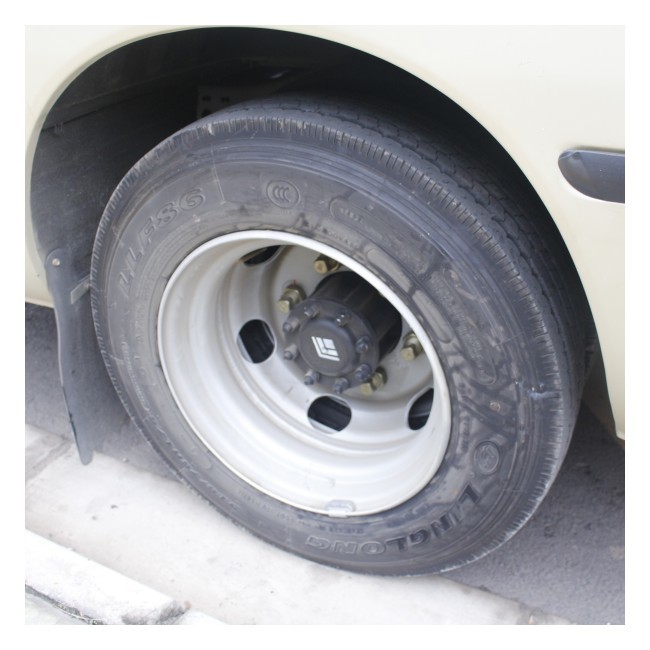

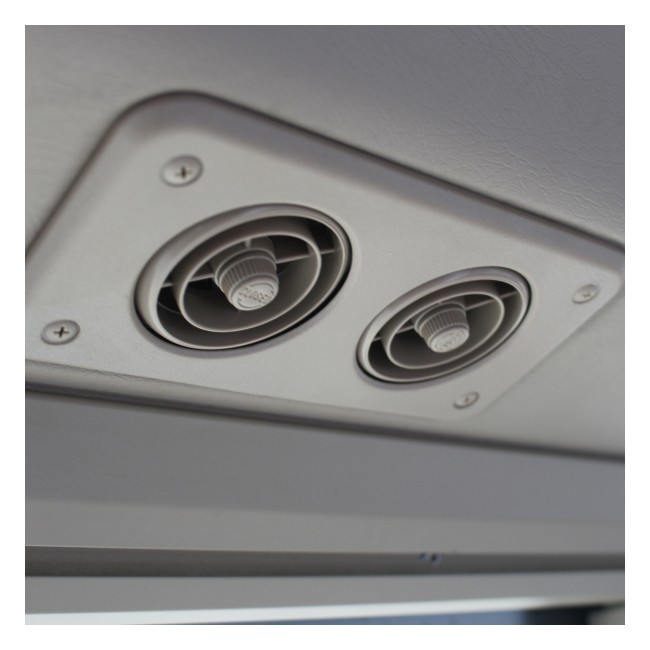

Pictures for reference
FAQ:
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
2. Buses and Coaches CBU, KD kiy,Chassis and Body frames.
3. Spare parts including various charger for EV.
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
