18 Meters Zev Bus 69 Km/H Electric Passenger Bus 50 Seats Passenger Capacity 150

  • 1
  • 2

Brand Name : ZEVAUTO

Model Number : CDL6280URBEV

Certification : ISO

Place of Origin : Chengdu, China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 25000 units/per year

Delivery Time : 25 working days

Packaging Details : nude packing

Product Name : 50 Seats Zev Bus

Passenger capacity : 158(32-50seats)

Max.power(kw/rpm) : 200

Max. torque (N.m/rpm) : 1150

Battery : 258.4 kwh，LiFePo4

Charging time : Single or Double optional. Full charging 3h single / 1.5h double

AC : 2 units roof-mounted cooling AC. 21/28kw

Contact Now

New Energy City Bus 18 Meters Electric Passenger Bus 50 Seats Zev Bus Passenger capacity 150.



18m e-bus is a zero-electric city bus that deploys the latest electric drive.



Specs





Overall specs Passenger capacity 158(32-50seats) Motor specs Manufacturer ZEV
Vehicle size (mm) 18000×2550×3480 Model --
Wheel base (mm) 5900+6100 Position rear
Front/Rear overhang 2600/3400 Motor type PMSM
Front/Rear tread 2110/1910/1860 Max.power(kw/rpm) 200
Approach/Departure(º) 8/7 Max. torque (N.m/rpm) 1150
Max. Grade-ability(%) 15% Displacement(L) --
Top speed (km/h) 69km/h Fuel Electric
Curb weight (kg) 17700 Emission --
Gross weight (kg) 28000
Battery 258.4 kwh,LiFePo4
Charging time

Single or Double optional.

Full charging 3h single / 1.5h double
Driving range 280-650km
  Item Specs Remarks
Chassis Front axle 8T
Supporting axle 8T
Rear axle 13T
Transmission Auto transmission
Suspension F2/R4, Non-independent air suspension
Steering Integral power steering, elector-hydraulic power steering
Braking Front & rear disc air brake, spring actuated and air cut-off parking ,with WABCO ABS
Tyre 275/70R22.5 aluminum rim
Battery Maintenance-free type 2*195Ah
electronics AC 2 units roof-mounted cooling AC. 21/28kw
Defroster Electric heater
Instrument CAN BUS LINE. LCD instrument
Audio-system 2 pcs LCD display
Lights LED combination lights
Monitoring system CCTV system with 10 cameras
Route board Front, rear and side LCD screen
Bus facilities Body Cathode coating.
Passenger door Front aluminum inner swing door
Window Sliding side window, laminated front windscreen and tempered rear-shield
Passenger seat 28 plastic city bus seats with cushion
Interior aluminum-plastic
Floor and floor cover PVC floor, anti-slippery, flame retardant leather
Paint Solid paint
Others Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, Travelling record with GPS

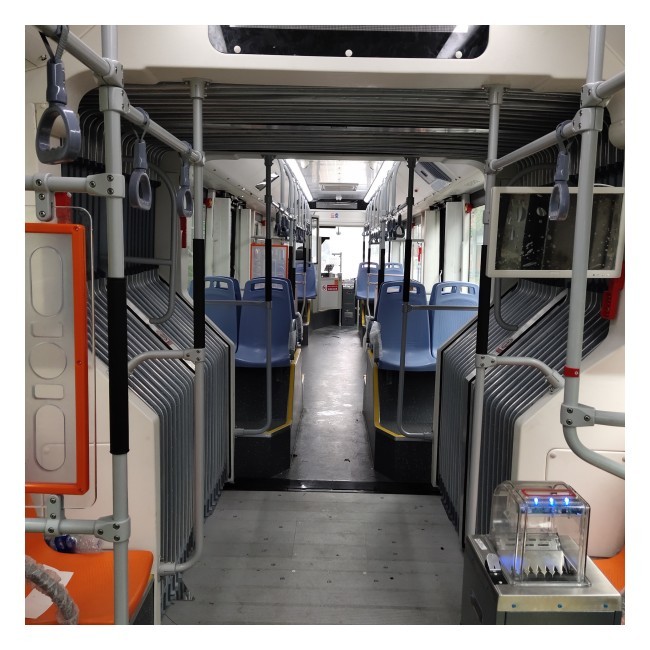

Pictures for reference



18 Meters Zev Bus 69 Km/H Electric Passenger Bus 50 Seats Passenger Capacity 150

18 Meters Zev Bus 69 Km/H Electric Passenger Bus 50 Seats Passenger Capacity 150





FAQ:


Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.



Q: What can we offer?

A:

  • As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
  • Buses and coaches CBU, KD kit, Chassis and Body frames
  • Spare parts including various charger for EV



Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .



Q: What’s the delivery time?

A: Normally 20-35 workdays.



Q: Why choose us?

A: We guarantee professional service, competitive price with high quality vehicles.
